C PURLINS
C PURLINS
Z PURLINS
|
| Z Purlins / C Purlins and Channels and Channels |
|
|
| Area Load |
kg/m2
| 150
| 300
| 400
| 500
| 600
| 700
| 800 |
|
UDL |
kg/m |
91.5 |
183 |
244 |
305 |
366 |
427 |
488 |
Sr. No |
Section |
kg/m |
Safe Span in feet |
1 |
150C50T0.9 |
1.73 |
10 |
6 |
5 |
4 |
4 |
3 |
3 |
2 |
150C65T1.25 |
2.67 |
13 |
9 |
8 |
7 |
6 |
5 |
5 |
3 |
150C65T1.5 |
3.19 |
18 |
12 |
11 |
9 |
8 |
8 |
7 |
4 |
150C65T1.8 |
3.80 |
19 |
14 |
12 |
11 |
10 |
9 |
8 |
5 |
150C65T2.5 |
5.20 |
21 |
17 |
16 |
14 |
13 |
12 |
11 |
6 |
200C65T1.5 |
3.78 |
21 |
14 |
12 |
11 |
9 |
9 |
8 |
7 |
200C65T1.8 |
4.51 |
24 |
17 |
15 |
13 |
12 |
11 |
10 |
8 |
200C65T2.5 |
6.18 |
27 |
21 |
20 |
18 |
16 |
15 |
14 |
9 |
250C65T1.8 |
5.22 |
28 |
19 |
17 |
15 |
13 |
12 |
11 |
10 |
250C65T2.5 |
7.16 |
32 |
26 |
23 |
21 |
19 |
17 |
16 |
11 |
300C65T1.8 |
5.92 |
30 |
20 |
17 |
15 |
14 |
12 |
11 |
12 |
300C65T2.5 |
8.14 |
38 |
30 |
26 |
23 |
21 |
19 |
18 |
Design Parameter
» |
Design Code : AISI |
» |
Deflection Limitation : Span/240 for live load |
» |
Beam is simply supported |
» |

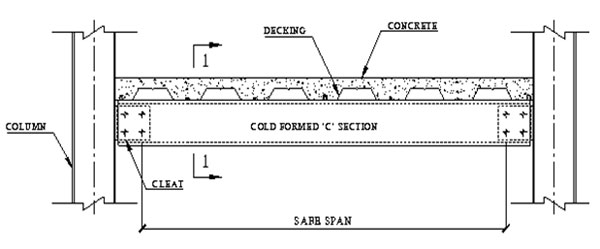

Safe span Specified is the unsupported length of beam |
» |
Compression flange is fully restrained |
» |

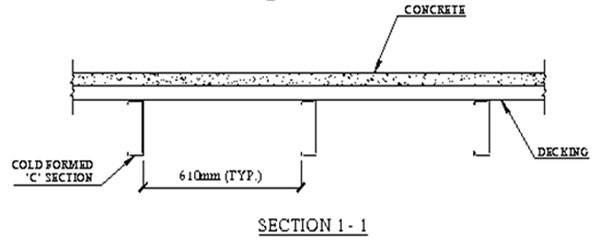

Spacing between the beam : 610 mm |
» |
Minimum yield strength |
» |
Load is total load including (Dead + Live) |
Application : As Secondary beams in Industrial floor construction
|
Based in Mumbai, India, Thakkar Group supplies a large variety of C Purlin channel & Z Purlin Channel for customers in India & also caters to large Clientele based across the globe. |
|
