Metform offers outstanding range of steel decking profiles made out of galvanized steel (of all range), Plain cold rolled (CR) steel or even hot rolled (HR) steel for wide variety of roofing applications. We are a reputed manufacturer of Decking Sheets, based in Mumbai, India.
Metform Roof Decking range offers a variety of metal thickness (0.50 mm to 2.00 mm) profile and finish to meet differing requirements regarding span, insulation, water proofing, imposed load, and any other considerations. The expertise of our organization enables us to offer a broad category Decking Sheets. At Thakkar group, all products are manufactured with high precision roll-forming & component forming machines to maintain the highest industry standards. Decking sheets manufactured by Thakkar Group are offered in different aesthetic colours for roofing & wall cladding.
|
| Advantages : |
• |
It can be used as a permanent structural support member for slab. |
• |
It will reduce the shuttering time and cost. |
• |
It will enable fast construction of building roofs and floors save upto 50% of construction time of the slab and roof. |
• |
Once design as composite structural, will allow either to reduce or to eliminate the structural steel used in RCC slabs. |
• |
Internal plastering of roofs can be eliminated because steel roof decking give aesthetic look internally also.
|
|

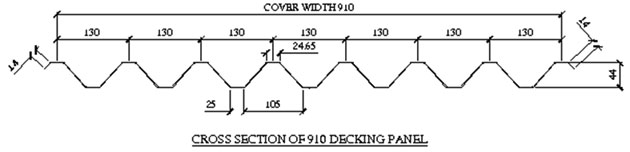

TRAPEZOIDAL DECKING PANEL 910
|
DIMENSIONAL DRAWINGS |
|
Outstanding range of RolaDeck profiles made out of Galvanized Steel,Cold Rolled with variety of shuttering Applications.Roladecking rangeoffers avariety of metal thickness (0.60mm to 2.00mm) profile & finish to meet differing requirements Regarding span,imposed load etc. |
Sr.No. |
Thickness |
Weight |
Weight |
Area |
Iyy |
Ixx |
Zyy |
Zxx |
Ryy |
Rxx |
|
MM |
Sq/ m |
Kg/ m |
Cm**2 |
Cm**4 |
Cm**4 |
Cm**3 |
Cm**3 |
Cm |
Cm |
1 |
0.60 |
6.37 |
5.80 |
7.39 |
19.29 |
5567 |
8.34 |
119.71 |
1.62 |
27.44 |
2 |
0.80 |
8.50 |
7.74 |
9.86 |
25.73 |
7723 |
11.08 |
115.59 |
1.62 |
27.44 |
3 |
1.00 |
12.29 |
10.20 |
12.32 |
33.38 |
9278 |
15.17 |
194.48 |
1.61 |
27.44 |
4 |
1.20 |
12.43 |
11.56 |
14.73 |
38.32 |
11099 |
16.32 |
232.49 |
1.61 |
27.44 |
5 |
1.60 |
16.57 |
15.37 |
19.58 |
50.81 |
14766 |
21.41 |
309.12 |
1.61 |
27.44 |
6 |
2.00 |
20.71 |
19.14 |
24.39 |
63.02 |
19398 |
26.24 |
384.89 |
1.60 |
27.46 |
7 |
2.50 |
25.89 |
23.94 |
30.49 |
78.81 |
19936 |
32.46 |
481.06 |
1.60 |
27.46 |
|
| |
Material |
Galvalume |
Pre-Coated |
Galvanized |
Thickness |
0.47- 0.6 |
0.5 - 1.25 |
0.45 - 1.25 |
Coating |
Alu-Zin 150 GSM |
Zinc 120 GSM |
Zinc 120 GSM |
Length |
Upto 12 Mtr |
Upto 12 Mtr |
Upto 12 Mtr |
Color |
As per Color Shed |
As per Color Shed |
As per Color Shed |
Strength Mpa/Uts |
240-340 |
240-340 |
240-700 |
|
LOAD BEARING CAPICITY OF DECKING PANEL 910
|
|
Span In Meter |
Sr.No. |
Thickness |
1 |
1.2 |
1.4 |
1.5 |
1.6 |
1.7 |
1 |
0.45 |
500.0 |
370.0 |
270.0 |
235.0 |
205.0 |
185.0 |
2 |
0.50 |
590.0 |
410.0 |
300.0 |
260.0 |
230.0 |
205.0 |
3 |
0.55 |
645.0 |
445.0 |
329.0 |
285.0 |
250.0 |
220.0 |
4 |
0.60 |
700.0 |
485.0 |
355.0 |
310.0 |
275.0 |
240.0 |
5 |
0.65 |
760.0 |
525.0 |
385.0 |
335.0 |
295.0 |
260.0 |
6 |
0.80 |
930.0 |
640.0 |
475.0 |
410.0 |
360.0 |
320.0 |
|
|
|
|
