| Metal Roofing Cladding / Metal Roofing Sheets |
| |
|
|
Modern Roofing Product are established in response to growing interest in Giant Structures, Modern life style, Best Outlook of Premises, With better quality Durability and Capability Of Roofing, METFORM ROOFING is Committed to fulfill Structural requirement & complete satisfaction.
|
Roofing
Styles
|
• |
Trapeziodal
Roofing panel 1000 |
• |
Trapeziodal
Roofing panel 1050 |
• |
Clippon Roofing
Panel |
|
• |
Metform Offers Trapezoidal Profiles, An environment
friendly solution that provides exceptional life cycle
performance for roofings and wall claddings to be
used in industrial sheds, commercial buildings and
residential homes.
|
• |
Long span capability, good load bearing capability
and structural efficiency are met by range of METFORM
TRAPEZOIDAL PROFILES.
|
• |
When you choose METFORM
TRAPEZOIDAL PROFILES you get flexibility in
Thickness, Length & Height dimensions and colour. |
• |
METFORM TRAPEZOIDAL PROFILES are made out of Galvanized Steel (of all grades),
colour coated steel, Galvalume® sheets, and even
aluminium. Most of the Colour coated sheets and Galvalume®
Sheets are imported from korea and Germany.
|
|

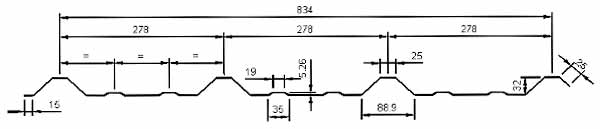

SECTIONAL PROPERTIES OF ROOFING PANEL 834
|
|
|
Sr.No. |
Thickness |
Weight |
Area
|
Iyy |
Ixx |
Zyy |
Zxx |
Ryy |
Rxx |
| |
MM |
Kg/
meter |
Cm**2 |
Cm**4 |
Cm**4 |
Cm**3 |
Cm**3 |
Cm |
Cm |
1
|
0.45
|
3.63
|
4.32
|
6.10
|
3296
|
2.64
|
71.64
|
1.15
|
26.70
|
2 |
0.50
|
4.03
|
5.14
|
6.78
|
3663
|
3.07
|
79.59
|
1.15
|
26.70 |
3 |
0.55
|
4.40 |
5.60
|
7.46
|
4039
|
3.22
|
87.55
|
1.15 |
26.70 |
4 |
0.60
|
4.84
|
6.17
|
8.14
|
4395
|
3.51
|
95.50
|
1.15 |
26.70 |
5 |
0.65
|
5.24
|
6.68
|
8.81
|
4761
|
3.80
|
103.46
|
1.15 |
26.70 |
6 |
0.80
|
6.25
|
8.22
|
10.85
|
5860
|
4.67
|
127.32
|
1.15 |
26.70 |
|

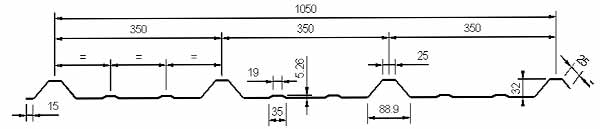

SECTIONAL PROPERTIES OF ROOFING PANEL 1050
|
|
Sr.No. |
Thickness |
Weight |
Area
|
Iyy |
Ixx |
Zyy |
Zxx |
Ryy |
Rxx |
| |
MM |
Kg/
meter |
Cm**2 |
Cm**4 |
Cm**4 |
Cm**3 |
Cm**3 |
Cm |
Cm |
1
|
0.45
|
4.37
|
5.57
|
6.77
|
6000
|
2.77
|
106.27
|
1.10
|
32.83
|
2 |
0.50
|
0.50
|
6.19
|
7.53
|
6668
|
3.07
|
118.07
|
1.10
|
32.83 |
3 |
0.55
|
5.34
|
6.81
|
8.26
|
7334
|
3.38
|
129.88
|
1.10 |
32.83 |
4 |
0.60
|
5.83
|
7.43
|
9.03
|
8001
|
3.68
|
141.68
|
1.10 |
32.83 |
5 |
0.65
|
6.32
|
8.04
|
9.79
|
8668
|
3.98
|
153.48
|
1.10 |
32.83 |
6 |
0.80
|
8.26
|
10.52
|
12.80
|
11336
|
5.19
|
200.68
|
1.10 |
32.83 |
|
|
CLICK HERE FOR LOAD BEARING CAPICITY OF ROOFING PANEL
1050
|

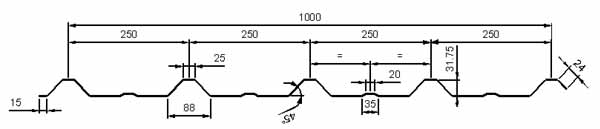

SECTIONAL PROPERTIES OF ROOFING PANEL 1000 |
|
Sr.No. |
Thickness |
Weight |
Area
|
Iyy |
Ixx |
Zyy |
Zxx |
Ryy |
Rxx |
| |
MM |
Kg/
meter |
Cm**2 |
Cm**4 |
Cm**4 |
Cm**3 |
Cm**3 |
Cm |
Cm |
1
|
0.45
|
4.32
|
5.56
|
7.67
|
5553
|
3.34
|
101.70
|
1.18
|
31.75
|
2 |
0.50 |
4.80
|
6.12
|
8.52
|
6171
|
3.71
|
112.98
|
1.18
|
31.75 |
3 |
0.55
|
5.28
|
6.12
|
9.33
|
6779
|
4.04
|
124.15
|
1.17 |
31.75 |
4 |
0.60 |
5.76
|
7.33
|
10.17
|
7393
|
4.40
|
135.39
|
1.17 |
31.75 |
5 |
0.65
|
6.23 |
7.94
|
11.01
|
8007
|
4.76
|
146.63
|
1.17 |
31.75 |
6 |
0.80
|
7.67
|
9.77
|
13.53
|
9844
|
5.83
|
180.63
|
1.17 |
31.75 |
|
| CLICK
HERE FOR LOAD BEARING CAPICITY OF ROOFING PANEL 1000 |

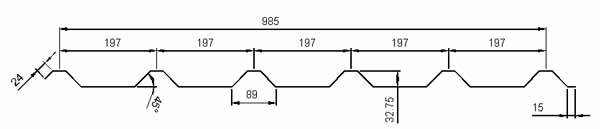

SECTIONAL PROPERTIES OFTRAPAZIODIAL ROOFING
PANEL 985 |
|
Sr.No. |
Thickness |
Weight |
Area
|
Iyy |
Ixx |
Zyy |
Zxx |
Ryy |
Rxx |
| |
MM |
Kg/
meter |
Cm**2 |
Cm**4 |
Cm**4 |
Cm**3 |
Cm**3 |
Cm |
Cm |
1
|
0.4
|
3.87
|
4.93 |
7.6
|
4878
|
3.51
|
90.27
|
1.24
|
31.44
|
2 |
0.45
|
4.35
|
5.56
|
8.5
|
5488
|
3.94
|
101.55
|
1.24
|
31.44 |
3 |
0.5
|
4.84
|
6.16
|
9.5
|
6097
|
4.38
|
112.83
|
1.24 |
31.44 |
4 |
0.55 |
5.326
|
6.78
|
10.45
|
6707
|
4.81
|
124.11
|
1.24 |
31.44 |
5 |
0.6
|
5.81 |
7.4
|
11.41
|
7317
|
5.24
|
135.39
|
1.24 |
31.44 |
6 |
0.65
|
6.29
|
8.01 |
12.36
|
7937
|
5.67
|
146.66
|
1.24 |
31.44 |
7 |
0.8 |
7.74 |
9.86 |
15.21 |
9756 |
6.96 |
186.49 |
1.24 |
31.44 |
8 |
0.9 |
8.71 |
11.01 |
17.11 |
10971 |
7.81 |
202.95 |
1.24 |
31.44 |
9 |
1 |
9.68 |
12.33 |
19.01 |
12190 |
8.66 |
225.49 |
1.24 |
31.44 |
10 |
1.6 |
15.48 |
19.72 |
30.42 |
19496 |
13.67 |
360.49 |
1.24 |
31.44 |
11 |
2 |
19.35 |
24.65 |
38.06 |
24370 |
16.95 |
450.49 |
1.24 |
31.44 |
|

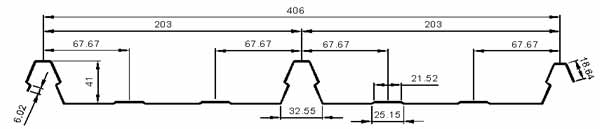

SECTIONAL PROPERTIES OF CLIPPON ROOFING
PANEL |
|
Sr.No. |
Thickness |
Weight |
Area
|
Iyy |
Ixx |
Zyy |
Zxx |
Ryy |
Rxx |
| |
MM |
Kg/
meter |
Cm**2 |
Cm**4 |
Cm**4 |
Cm**3 |
Cm**3 |
Cm |
Cm |
1
|
0.55
|
2.61
|
3.33
|
6.45
|
584.03
|
2.10
|
26.75
|
1.39 |
13.24 |
2 |
0.6 |
2.85
|
3.63
|
7.04
|
637.00 |
2.29
|
29.18
|
1.39
|
13.24 |
3 |
0.65
|
3.09
|
3.94
|
7.63 |
690.00
|
2.48
|
31.60
|
1.39 |
13.24 |
4 |
0.8 |
3.80
|
4.84
|
9.39
|
849.00
|
3.05
|
38.88
|
1.39 |
13.24 |
|
METFORM CLIPIX which is ROOFING SYSTEM totally leak proof and weather tight. Its high ribs and long lengths coupled with its positive concealed clip fixing methods make it the ideal roofing for the high rainfall intensity regions with its wide treys, it quickly disperses water safely to the outer perimeter of roof.Besides this unique feature,this profile has wide pan for
faster drainage and easy walking during maintenance.
|
| The Unique Features of Metform Trapezoidal Profiles are : |
• |
Aesthically
beautiful due to streamlined surface |
• |
Low maintainence |
• |
Easy to erect
because of light weight |
• |
More Resistant
to wind, rain, sand, snow and ice shreddings |
• |
Long Lasting
and Durable |
• |
Available with
and without insulation |
• |
Eliminate
Fire Hazards |
