T-Grid False ceiling Systems

For General Applications, choose from a variety of exposed tee and bolt slot suspension grid products. Metcraft exposed ceiling grid systems are an economical solution for interior environments. These commercial ceiling suspension systems are available in both seismic and fire resistant designs.

Ceiling panel are widely used in interior works as well as for outside works also like for shopping mall, workshops, petrol pumps, star hotels, airports, banks, clean room & for commercial establishments.

These sections are very light weight for use. Thus it’s Easy for installation.

All sections stocked in for the max.length 6 metres (special cut out lengths are available on request). All sections are computerised designed.

Material : galvanized aluminium (precolour coated or powder coated)

Thickness : pre coated steel – 0.5 to 0.6 mm aluminium powder coated 0.6 to 0.9 mm

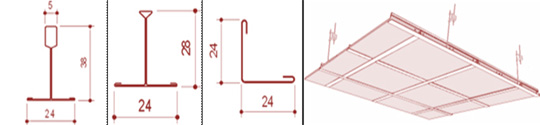

Main Runner MET380
Cross Tee
Angle
T - Grid Ceiling System

Colour

Material

Installation

Loading Capacity

Fire rating

MET Standard White colour

Body : double web, hot dipped galvanised Steel cap: Pre-painted hot-dip galvanised steel

It must be as per ASTM C636

The capacity of main runner is 15 kg/m & tested as per specifications outlined in ASTM C635 by certified agency

The main runner is provided with fire rated notch which allows grid expansion


PERMISSIBLE DISTRIBUTED LOAD FOR MET-GRID SYSTEM

S/N

Ceiling Module

Main Tee Spacing (feet)

Cross Tee length (feet)

Grid System (feet)

Permissible Distributed Load Kg/sq.m

1

4

4&2

2X4

9.1





2

2

2

2X2

22.4

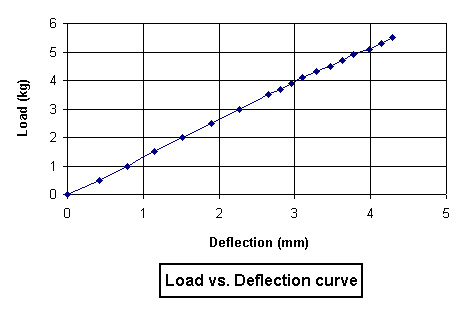

LOADING TEST GRAPH BASED ON ASTM C635 - 1/360 SPAN DEFLECTION
